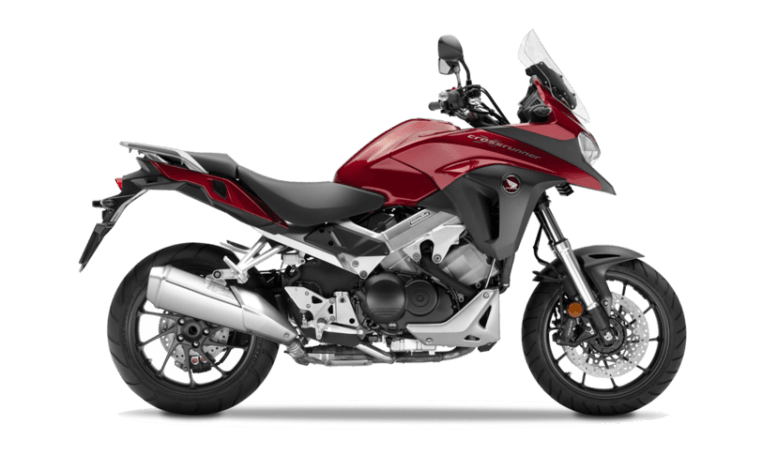

Honda’s premium adventure sports tourer evolved substantially for 2015, with a host of upgrades designed to deliver more hard-riding excitement. It featured more mid-range torque and top-end power from its upgraded V4-VTEC engine, sharper adventure styling plus refined ergonomics and longer travel suspension, new wheels and brakes. Honda Selectable Torque Control (HSTC) system, ABS, full LED lighting, 5-stage heated grips, self-cancelling indicators and a height-adjustable seat were all fitted as standard. For 2017, a DC charger and adjustable windscreen are added, and the engine is EURO4 compliant.
Engine Specs
Bore × Stroke (mm) |
72 x 48mm |
Carburation |
PGM-FI electronic fuel injection |
Compression Ratio |
11.8 : 1 |
Engine Displacement (cc) |
782cc |
Engine Type (cm³) |
Liquid-cooled 4-stroke 16-valve DOHC 90° V-4 |
Max. Power Output |
78kW @ 10,250rpm (95/1/EC) |
Max. Torque |
75Nm @ 8,500rpm (95/1/EC) |
Oil Capacity (Litres) |
3.9L |
Starter |
Electric |
Clutch |
Wet, multiplate with coil springs |
Final Drive |
O-ring sealed chain |
Transmission Type |
Constant mesh 6-speed |
Chassis Specs
Brakes Front |
ABS (2-Channel) 310mm x 4.5mm dual floating hydraulic disc with radial fit 4-piston calipers and sintered metal pads |
Brakes Rear |
256mm x 6mm hydraulic disc with 2-piston caliper and sintered metal pads |
Suspension Front |
43mm HMAS cartridge-type telescopic fork with stepless preload and ten DF adjustment, 131mm axle travel, 145mm stroke |
Suspension Rear |
Pro-Link with gas-charged HMAS damper, 35-step (remote-controlled hydraulic) preload and stepless rebound damping adjustment, 148mm axle travel |
Tyre Size Front |
120/70 R17 |
Tyre Size Rear |
180/55 R17 |
Wheels Front |
17M/C x MT3.5 10-spoke die-cast aluminium |
Wheels Rear |
17M/C x MT5.5 10-spoke die-cast aluminium |
Dimensions
Battery Capacity (VAh) |
12V/11AH (YTZ-12S) |
Caster Angle |
26°30’ |
Dimensions (L×W×H) (mm) |
2,190mm x 870mm x 1,360mm |
Frame type |
Diamond; aluminium twin-spar; pivotless |
Fuel Tank Capacity (Litres) |
20.8L |
Fuel Consumption |
53mpg (WMTC) |
Ground Clearance (mm) |
165mm |
Kerb Weight (kg) |
242kg |
Seat Height (mm) |
835/815mm |
Trail (mm) |
103mm |
Wheelbase (mm) |
1,475mm |
