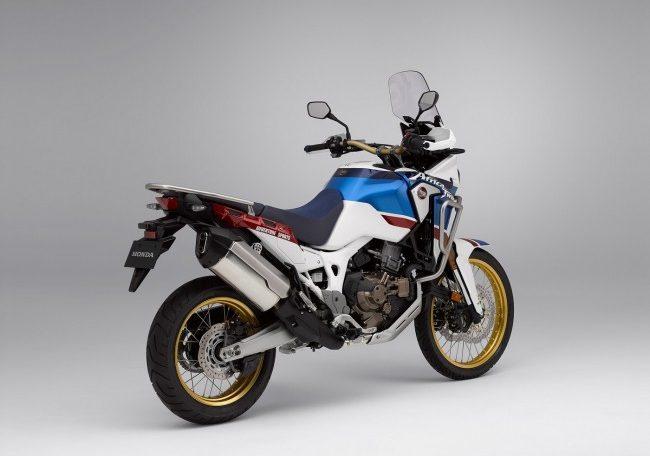

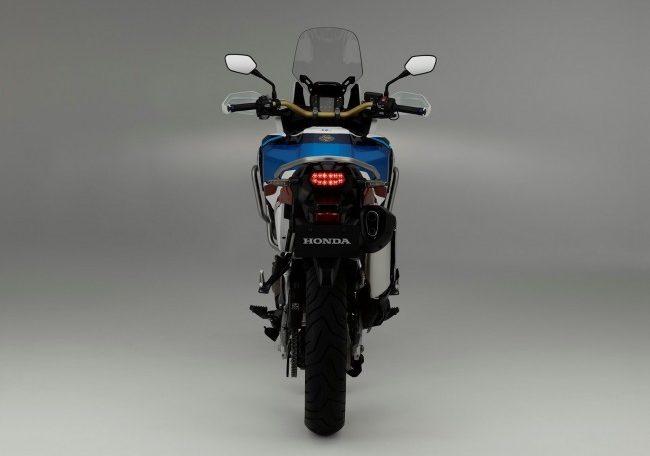

Building on the CRF1000L Africa Twin impressive features and chassis the new CRF1000L Africa Twin Adventure Sports version extends the platform even further into long-range off-road ready territory.
A new version of Honda’s Africa Twin is ready for Adventure Sports in 2018, with larger fuel tank for a range of over 500km, higher riding position, greater ground clearance, heated grips, extended fairing plus longer travel suspension.
Call us today 01 4055220
5. Technical Specifications
ENGINE | |
Type |
Liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and uni-cam
|
Displacement | 998cm3 |
Bore & Stroke | 92.0 x 75.1mm |
Max. Power Output | 70kW/7,500rpm (95/1/EC) |
Max. Torque | 99Nm/6,000rpm (95/1/EC) |
FUEL SYSTEM | |
Fuel Capacity | 18.8 litres |
Fuel consumption (WMTC mode) | MT: 21.7 km/l (WMTC) DCT: 21.8 km/l (WMTC) |
DRIVETRAIN | |
Clutch | MT: Wet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutch
DCT: 2 Wet multiple clutches |
Gearbox / Transmission Type | Constant mesh 6-speed MT / 6-speed DCT with on and off-road riding modes |
Final Drive | O-ring sealed chain |
FRAME | |
Type | Steel semi-double cradle type with high-tensile strength steel rear subframe |
CHASSIS | |
Dimensions (L x W x H) | 2,335 x 930 x 1,475mm |
Wheelbase | 1,575mm |
Seat Height (STD position / Low position) | 870/850mm |
Ground Clearance | 250mm |
Kerb Weight | 230 kg (MT), 240kg (DCT) |
Turning Radius | 2.6m |
SUSPENSION | |
Suspension (front) |
Showa 45mm cartridge-type inverted telescopic fork with hydraulic dial-style preload adjuster and DF adjustment, 230mm stroke, 204mm axle travel
|
Suspension (rear) |
Monoblock cast aluminium swing arm with Pro-Link with gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustment, 220 mm rear wheel travel, 94 mm axle stroke
|
WHEELS | |
Wheels Front | Wire spoke with aluminium rim |
Wheels Rear | Wire spoke with aluminium rim |
Rim Size Front | 21M/C x MT2.15 |
Rim Size Rear | 18M/C x MT4.00 |
Tyres Front | 90/90-R21 tube type |
Tyres Rear | 150/70-R18 tube type |
BRAKES | |
ABS system type | 2-Channel with rear ABS off switch |
Type Front |
310mm dual wave floating hydraulic disc with aluminium hub and radial fit 4-piston calipers and sintered metal pads
|
Type Rear |
256mm wave hydraulic disc with 1-piston caliper and sintered metal pads. Also Lever-Lock Type Parking Brake System on DCT model with additional slide type 1-piston caliper
|
INSTRUMENTS & ELECTRICS | |
Instruments |
Rally style negative LCD instrument display including: Riding Modes, Speedometer, Tachometer, Fuel, Gear position, ABS, HSTC, Odometer, Trip and Clock
|
Headlight | Dual LED (1 High/1 Low) |
Taillight | LED |
Indicators | LED |
All specifications are provisional and subject to change without notice
** Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.
