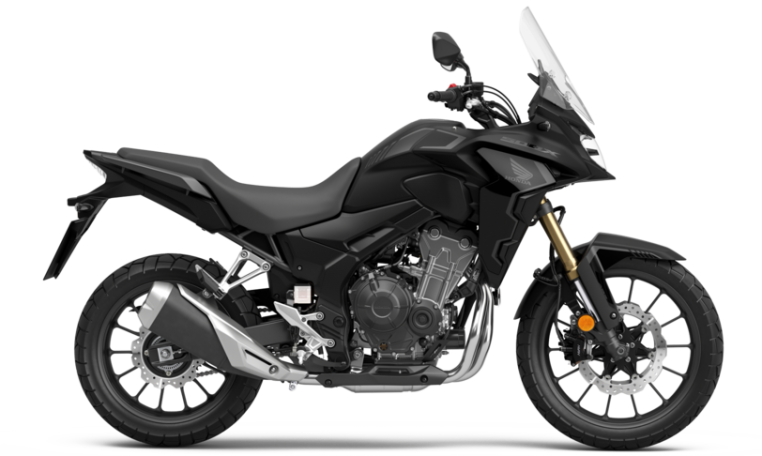

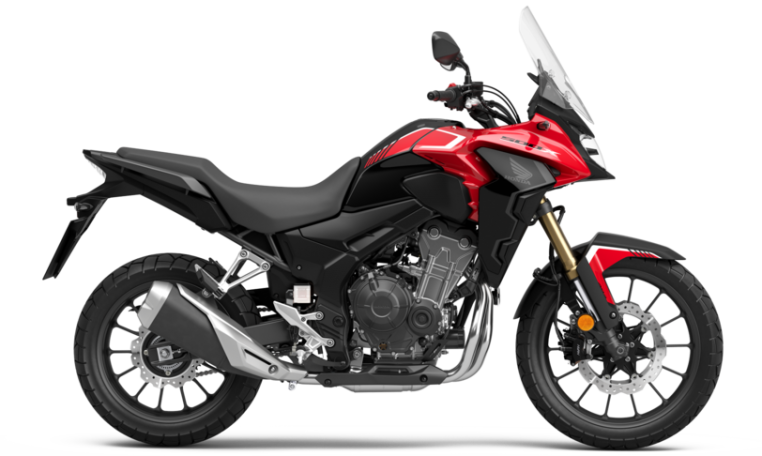

Honda CB500X


  • Honda CB500X
  • Honda CB500X
  • Honda CB500X
  • Honda CB500X
  • Honda CB500X
  • Honda CB500X

With its easy handling and relaxed rider position, the CB500X makes adventure more accessible than ever, providing both an exciting step up for A2 licence holders and an attractive alternative for more established riders.The CB500X’s liquid-cooled, DOHC, parallel twin engine produces the kind of power that won’t be out of place alongside bigger bikes. The 41mm telescopic front forks promote a compliant, comfortable ride, while the adjustable rear shock provides important flexibility depending on rider size and road surface.

Honda’s Pro-Link System and cast aluminium wheels with their lightweight spoke design deliver nimble handling. Wavy discs and Anti-Lock Braking System (ABS) as standard ensure confident stopping power. Both rider position and visibility are excellent, with the seat shape and height adding to the overall feeling of comfort. The digital display is easy to read and the adjustable windscreen provides you with superb wind protection. Class leading fuel economy
and a tank that holds enough for over a 450km journey, means whether you’re commuting or touring, this bike gives you the best of both worlds.

  • A2 License
  • Parallel Twin

Dimensions and Weights

Battery Capacity (VAh): 12V 8.6AH
Caster Angle: 26.5 degrees
Dimensions (L×W×H) (mm): 2095mm x 830mm x 1360mm (Low screen) 1390mm (Hi screen)
Frame type: Steel diamond
Fuel Tank Capacity (Litres): 17.5L (inc reserve)
Fuel Consumption: 83mpg
Ground Clearance (mm): 170mm
Kerb Weight (kg): 196kg
Seat Height (mm): 810mm
Trail (mm): 108mm
Wheelbase (mm): 1420mm

Engine Specifications

Bore × Stroke (mm): 67mm x 66.8mm
Carburation: PGM-FI
Compression Ratio: 10.7:1
Engine Displacement (cc): 471cc
Engine Type (cm³): Liquid-Cooled, parallel twin
Max. Power Output: 35kW @ 8500rpm
Max. Torque: 43Nm @ 7000rpm
Oil Capacity (Litres): 3.2 litres
Starter: Electric

Chassis Specifications

Brakes Front: Single Wavy Disk, 320mm, 2 POT caliper
Brakes Rear: Single Wavy Disk, 240mm, 1 POT caliper
Suspension Front: Conventional Telescopic, 41mm, pre-load adjustable
Suspension Rear: Prolink mono with 9 stage Preload adjuster, steel square pipe swingarm
Tyres Front: On-Off Pattern
Tyre Size Front: 120/70ZR - 17M/C
Tyre Size Rear: 160/60ZR - 17M/C
Tyres Rear: On-Off Pattern
Wheels Front: 17 X MT3.5 Multi-Spoke Aluminium Cast
Wheels Rear: 17 X MT4.5 Multi-Spoke Aluminium Cast

Year: 2018
Make: Honda
Model: CB500X
Style: Commuter
Condition: New
Price: €7,500.00
Engine: 471cc
